Identity Provider

Choose Identity Provider

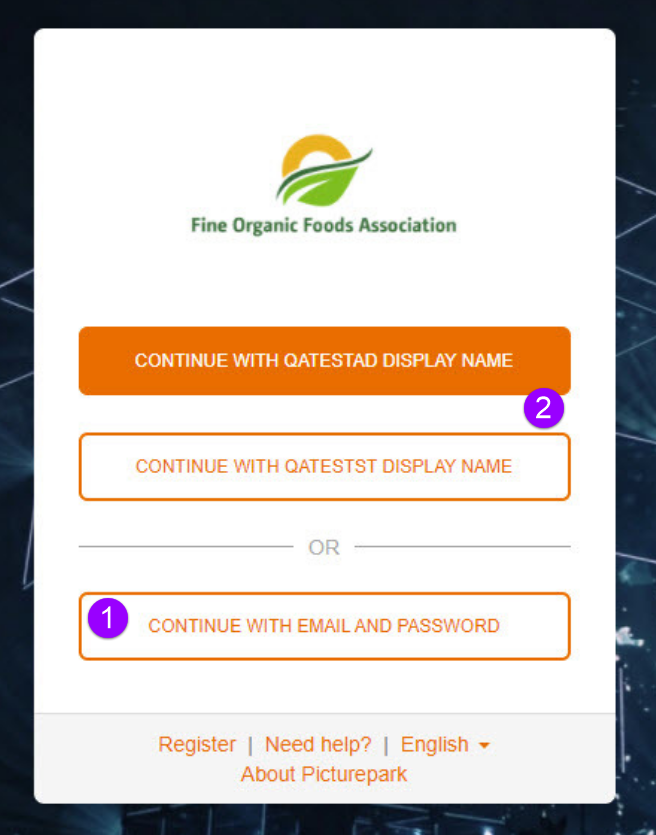

The user opens Picturepark by providing the Picturepark URL. They choose to log in with Picturepark IDS credentials by providing an email and password (1). This will authenticate the user with Picturepark IDS as Identity Provider. If configured, they can also choose another external identity provider (2) that will handle the authentication.

In the Customer Default Settings, you can set the accent color for the IdP.

Create Identity Provider

You can configure one or many external Identity Providers for authentication.

Identity providers (short: IdP, IDP) are systems that manage and maintain identity information (e.g. user attributes). Identity providers offer user authentication as a service. Picturepark outsources the user authentication to the Picturepark Identity Server as the default trusted identity provider and is thus a relying party application to it. See Wikipedia Identity Provider.

Whenever Office 365 needs to verify a user, for example, Azure AD performs all identity and access management and is thus the trusted identity provider.

Prerequisites

• ADFS setup (See How To setup ADFS on Windows Server 2016 here)

• Your user must have Developer permission in the Picturepark configuration to see this menu.

• Your user role must have permission to manage Identity Provider.

Setup

Adding an external Identity Provider in Picturepark means adding it to the Picturepark IDS.

1. Open Settings > IdP setup.

2. In the list, choose Create new identity provider.

3. Enter the details.

4. Save.

Newly created IdP's or changes made to existing ones could take around a minute to take effect.

Settings

Setting	Value Example	Description
Name	PictureparkADFSWinServer2016	A meaningful name that is used as a reference, it cannot be changed afterward.
Display name	Picturepark AD	Something users can relate to, which is shown to the users next to "Continue with"
Type	ADFS	ADFS currently supported in Picturepark.  Azure AD currently supported in Picturepark.   Others planned to support, but currently not in use.
Connection protocol	OpenID Connect	IdP must support OpenID Connect.
URL	https://ad.customer.ch/adfs	The Endpoint for OpenID with https.  For ADFS something like https://ad.customer.com/adfs. Check this with your IT.  For other identity providers, it is the Open ID Connect configuration e.g.  https://login.microsoftonline.com/99292bdd-6686-4f0b-817b-f8e8571cf07c/v2.0/.well-know/openid-configuration (Remove everything after the version number of the open id config URL) Do not use the /ls endpoint. If your ADFS URL is https://adfs02.domain.com/adfs/ls then use the URL without /ls: https://adfs5684.domain.com/adfs.

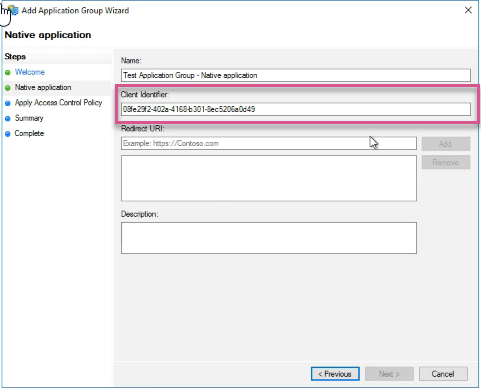

Client ID	Application ID e.g. 9df5684-1f10f-4125684-7feb535684	The ID of your application:
Client secret	GBAyfVL7YWtP6gudLIjbRZV_N0dW4f3x ETiIxqtokEAZ6FAsBtgyIq0MpU1uQ7J0 8xOTO2zwP0OuO3pMVAUTid	This is not needed. You can leave this empty.  The authentication flow is the definition of how the tokens to identify users are exchanged. Picturepark external Identity Provider must support Authorization Code Flow with PKCE. PKCE, pronounced “pixy” is an acronym for Proof Key for Code Exchange, which does not require users to provide a client_secret. The standard Authorization Code flow would require this. The main benefit is the reduced risk for native apps, as there are no embedded secrets in the source code and this in return limits exposure to reverse engineering.  If the Identity Provider does not support Authorization Code Flow with PKCE, the Client secret can be used. Then the client secret must match the applications client secret.
Sort order	0	A number, starting from 0 for the first position, and 1 as the second position.

After Creating the Identity Provider

1. Add claim mappings

2. Add group mappings

3. Add Identity Provider to users

Create Identity Provider (Claim) Mappings

You can configure claim mappings and group mappings for your external Identity Provider.

Identity providers (short: IdP, IDP) are systems that manage and maintain identity information (e.g. user attributes). Identity providers offer user authentication as a service. Picturepark outsources the user authentication to the Picturepark Identity Server as the default trusted identity provider and is thus a relying party application to it. See Wikipedia Identity Provider.

Whenever Office 365 needs to verify a user, for example, Azure AD performs all identity and access management and is thus the trusted identity provider.

Prerequisites

• Identity Provider set up.

Create Claim Mappings

1. Open Settings > IdP Settings.

2. You will see a setting entry for your new Identity Provider in the list. Double-click to open it.

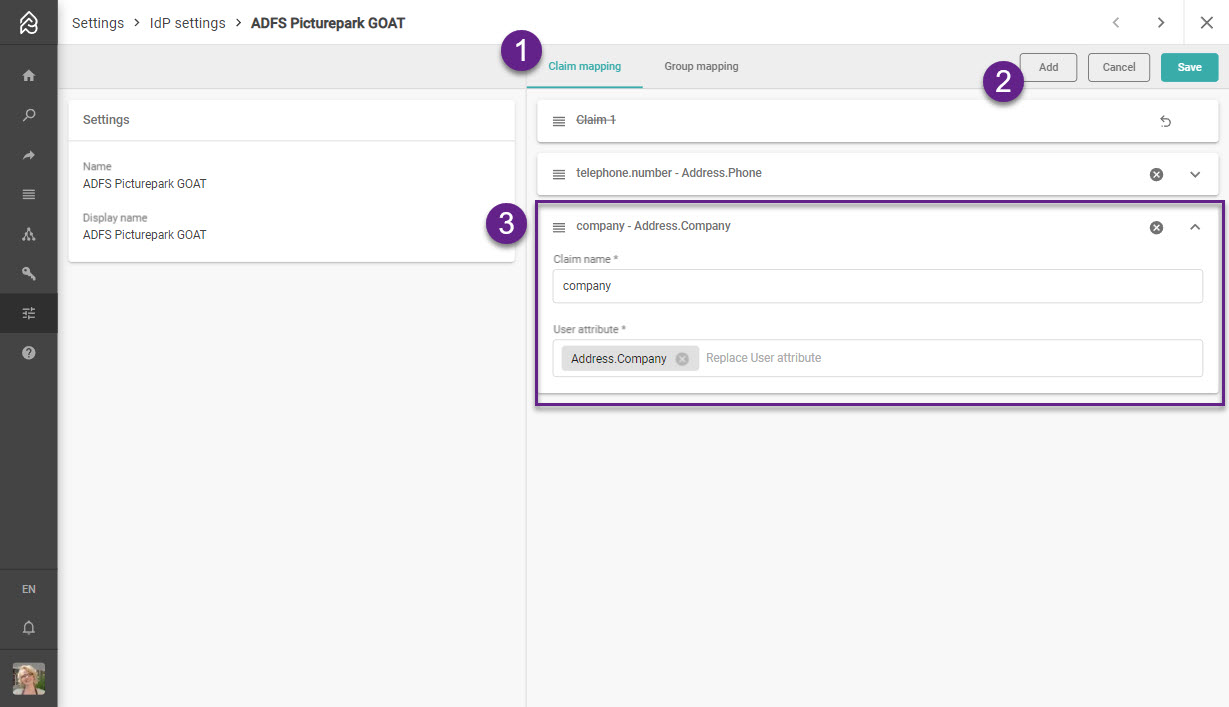

3. On the right side, in the first tab, you can add the claim mapping:

   1. Add claim mapping.

   2. Provide the claim name from your AD, which holds the user attributes e.g., company, telephone number. Ensure the correct spelling!

   3. Map to Picturepark user attributes.

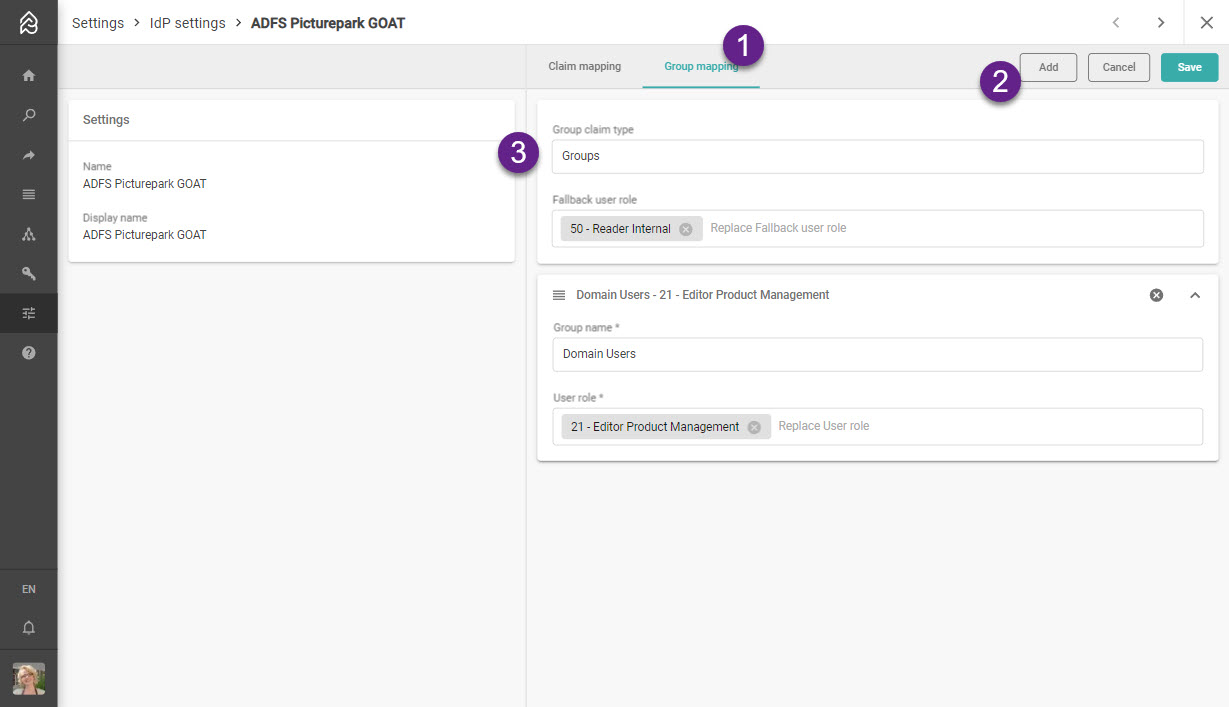

On the right side in the second tab, you can add the group mapping:

1. Add group mappings.

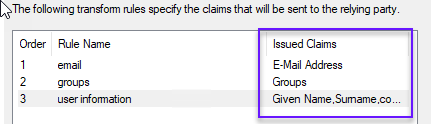

   1. Provide the claim name (issued claims) from your AD, which holds your user group assignments, e.g., Groups. Ensure the spelling is correct!




   2. Define a Fallback user role. The fallback user role of the IdP will only be used if none of the group mappings find a matching role or the default user role is not defined for the Picturepark. This cannot be Super Admins.

   3. Map Group names from your AD to user roles in Picturepark.

Without group mappings your users will be able to login to Picturepark but will either have only the default role or fallback user role of your Picturepark assigned (if these are configured), or will not have any access. Be aware that you can also manually add roles to federated users in Picturepark.

There is a Microsoft limitation for ADFS 2.0 which prevents using Domain Local Groups in a claim. Choose global or universal groups. More details on this limitation: https://social.technet.microsoft.com/wiki/contents/articles/13829.ad-fs-2-0-domain-local-groups-in-a-claim.aspx

Automatic Claim Mappings

The following attributes are mapped automatically in CP (if not overridden by a claim mapping).

Further information about claims here: https://docs.microsoft.com/en-us/windows-server/identity/ad-fs/technical-reference/the-role-of-claims

After Creating Identity Provider Mappings

1. Add Identity Provider to users

Update Identity Provider

1. Open Settings > IdP setup.

2. In the list, choose your desired Identity Provider.

3. Edit the details.

   1. You cannot update the name, only the display name.

4. Save.

Newly created IdP's or changes made to existing ones could take around a minute to take effect.

Effects of Updating Identity Provider

• Users cannot log in when their assigned Identity Provider is disabled.

• The display name will be updated on the login screen.

• The protocol cannot be changed.

• If you change the URL, your users' login requests will, from now on, be sent to the new URL.

• If you change the client ID, your users' login requests will, from now on, contain the new client ID, so you must ensure to have a working IdP with this client ID available.

• Changes to the Client secret have no effect if authorization code flow with PKCE is used; otherwise, the client secret must match with the application.

• Changing the sort order will change the sort order of the buttons on the login form, where 0 is the first position.

Delete Identity Provider

1. Open Settings > IdP setup.

2. In the list, delete your Identity Provider.

Before deleting Identity Provider

1. Open Users.

2. Switch Search Mode to Advanced.

3. Search for all users which have the Identity Provider assigned
   identityProviderId:<id>

4. Update those users, as otherwise, they can no longer log in to Picturepark.

Effects of deleting Identity Provider

• The users who were using this Identity Provider can no longer log in.

• No default or fallback Identity Provider will be assigned.

Purge Identity Provider

1. Open Settings > IdP setup.

2. In the list, select your Identity Provider.

3. Choose “Purge”.

4. In the confirmation dialog, select Purge.

Effects of purging Identity Provider

• Claims of all users will be purged.

• Users must login again and claims will be updated with the latest information of the IdP.
