Query Filters
Query filters (Channel Filter or Filters in Fields) help to restrict the values available for tagging in a tagbox e.g. show only products for EMEA; or the Content Items displayed in a specific Channel e.g. only approved product marketing content. Those filters do not require user input, they have a fixed return set based on specific criteria e.g. show only Arrangements, show only current employees, show only players from Real Madrid. Query filters are available for channels, fields (Tagbox, Relationship), via API (searching content, creation of channels, tagbox fields, relationship fields, or lists). The advanced filter editor allows to construct complex filters via drag & drop.
Types of Query Filters
Check all solutions for query filters here.
Date Range Filter
Show content modified in December 2020.
// USING EXACT DATES
{
"kind": "DateRangeFilter",
"field": "audit.modificationDate",
"range": {
"names": {
"fieldId.en":"Dec 2020",
"fieldId.de":"Dez 2020"
},
"from": "2020-12-01T00:00:00.000",
"to": "2020-12-31T00:00:00.000",
}
}Show content with a publish date in the last 30 days.
// USING DAY CALCULATIONS
{
"kind": "DateRangeFilter",
"field": "corporateInformation.publishDate",
"range": {
"names": {
"fieldId.en":"Last 30 days"
"fieldId.de":"Letzte 30 Tage"
},
"from": "now-30D",
"to": "now"
}// USING COMBINATIONS
{
"kind": "DateRangeFilter",
"field": "corporateInformation.embargoDate",
"range": {
"names": {
"fieldId.en":"Last 30 days"
"fieldId.de":"Letzte 30 Tage"
},
"from": "now-30D",
"to": "now"
},
{
"names": {
"fieldId.en":"Last fiscal year"
"fieldId.de":"Last fiscal year"
},
"from": "2019-03-31T01:02:02.000",
"to": "2020-03-31T01:02:02.000"
}
}
Picturepark supports
Y (years), M (month), D (days), H (hours), m (minutes)
Calculations starting with now e.g. now+30D, now-30D
Anchor dates and rounding are not supported (e.g. Jun 5th + 30d; now/M for the current month)
Basic Filter
Only content with a date/date-time value in the specified range.
Date Format: YYYY-MM-DDTHH:MM:SS:MMM
Year-Month-DayTHour-Minute-Second-Millisecond
{
"kind": "DateRangeFilter",
"field": "fieldpath",
"range": {
"names": {
"fieldId.en":"english text shown to the user",
"fieldId.de":"german text shown to the user"
},
"from": "YYYY-MM-DDTHH:MM:SS:MMM",
"to": "YYYY-MM-DDTHH:MM:SS:MMM",
}
}Properties
kind | Discriminator, string, required |
field | The field's name to execute the filter on. It is composed of the field ids of the hierarchy joined with "." (i.e. personLayer.address.street), check DateTime field values |
range | If no range provided, the filter will throw an error "query execution failure" and display it as empty. |
names | The translations of the ranges are nullable, language-specific range names |
from | it can be a date-time string or a pattern: now(+-)(int)(YMDHm). |
to | it can be a date-time string or a pattern: now(+-)(int)(YMDHm). |
Geo Bounding Box Filter
Show only content created in Aarau.
{
"kind": "GeoBoundingBoxFilter",
"field": "fieldpath",
"topLeft": {
"lat": 47.4117082,
"lon": 8.0569206,
},
"bottomRight": {
"lat": 47.3854459,
"lon": 9.0569206,
}
} Behavior

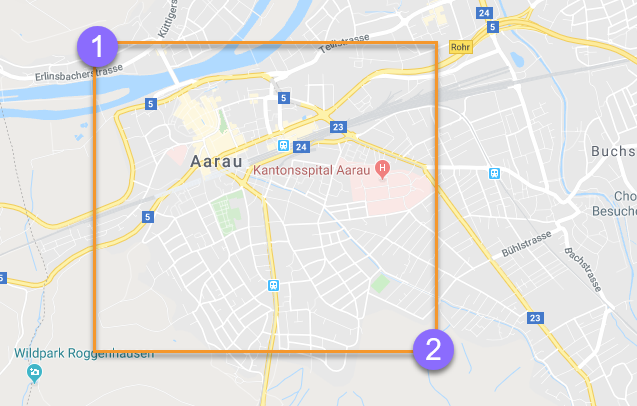

Creates a rectangle of geo points using TopLeft (1) and BottomRight (2) points and filters for the content which Geo Point values are inside this rectangle.
Properties
kind | Required Which filter to use, as string e.g. "GeoBoundingBoxFilter" |
field | Required The field's name to execute the filter on. It is composed of the field ids of the hierarchy joined with "." (i.e. personLayer.address.region). |
topLeft | The top left corner of the bounding box's geolocation (latitude and longitude). |
lat | Latitude value (decimal value) |
lon | Longitude (decimal value) |
bottomRight | The bottom right corner of the bounding box's geolocation (latitude and longitude). |
lat | Latitude value (decimal value) |
lon | Longitude (decimal value) |
